Calibration — traffic flows + edge weights

Showcase notebook — a self-contained demo of two aperta primitives in the sequence they compose in production: traffic-flow estimation feeds edge-weight calibration. Concretely, we

  1. fetch the Canton of Zurich car network from OpenStreetMap,

  2. estimate per-edge AADT (aperta.traffic_flows) via nested-betweenness sampling with a survey-derived target cost distribution,

  3. compute a per-edge congestion feature vc_beta_2 =    (flow_estimate / capacity)², and

  4. calibrate per-edge durations (aperta.calibration.calibrate_edge_weights) against observed peak-hour travel times, with vc_beta_2 as a multiplier feature alongside density_norm and is_traffic_signal.

The point of consolidating the two demos into one notebook is exactly this composition: flows in isolation produce a number that goes nowhere; edge weights in isolation ignore congestion. Together they tell one story — which is how aperta-atlas’s production pipeline is structured (main/04b_traffic_flows.py → main/05_edge_weights.py).

⚠️ Data availability. Only ground truth is proprietary: Swiss ASTRA traffic-counter readings (traffic_counters.gpkg) and Google-Maps-derived car travel times (travel_times_car_peak.csv), both under <APERTA_EXAMPLES_GROUND_TRUTH_DIR> (default ../data/ground_truth). aperta cannot redistribute these under their source terms — cells past §1 will not run without them. A synthetic public version is planned.

Not a full pipeline. For a production calibration on richer prepared inputs (population-derived trip generation from a calibrated Poisson GLM, calibrated cost-distribution bin edges, BPR capacity model, per-time-of-day fits, transferable coefficients), see aperta-atlas’s main/04b_traffic_flows.py + main/05_edge_weights.py.

Approach at a glance

Two per-edge features derived inline from raw OSM:

  • ``is_traffic_signal`` — per edge, 1 if EITHER endpoint node has the raw OSM tag highway=traffic_signals, else 0.

  • ``density_norm`` — per edge, mean of the per-node density at its two endpoints. Per-node density is KDTree-counted neighbours within DENSITY_RADIUS_M metres, normalised to [0, 1]. A network proxy for local intersection density; correlates with population density in canton-scale study areas but doesn’t require dasymetric- mapped population data.

Two simplifications carried over from the standalone flow demo. No stochastic routing — every OD pair takes a single deterministic shortest path. No capacity-based slowdown in the flow model itself — saturated and empty motorways carry the same edge weight during sampling. Net effect: over-prediction on highways / main roads, under-prediction on parallel local roads. That’s acceptable for a relative congestion feature (what enters edge_weight calibration via vc_beta_2); it’s not acceptable for road design.

Cost-distribution target. Each origin’s sampled trip costs are reweighted to match a target P(C) read directly from the ground-truth Google-Maps trip times — equal-probability percentile bins over [MIN_COST_S, MAX_COST_S]. bin_adjusted_dest_weights does the reweighting; nested_node_sample then draws destinations proportional to the adjusted weights.

Cell + zone hierarchy. Origins and short-trip destinations use H3-res-10 cells (~130 m); medium- and far-tier destinations aggregate to H3-res-8 zones (~460 m). Cell-level origins matter because intra-zone short trips contribute disproportionately to local-road flows.

Building-based trip generation. Each cell counts the OSM building centroids falling in it (n_buildings), then applies a Poisson-GLM-shaped rescaling with a density interaction: trip_weight ≈ (1 + n_buildings)^(LOG_BLDG_COEF + DENSITY_INTERACTION_COEF · density) The shape mirrors aperta-atlas 04a’s calibrated GLM (log1p(pop) + log1p(emp) with density interactions); we substitute n_buildings for the calibrated (pop, emp) pair and hand-pick the exponents.

[1]:

import os
import warnings
from pathlib import Path

import geopandas as gpd
import h3
import matplotlib.pyplot as plt
import numpy as np
import osmnx as ox
import pandas as pd
from shapely.geometry import Polygon
from sklearn.neighbors import KDTree

from aperta import (
    calibration,
    geo_processing,
    network_processing,
    network_snap,
    od_pairs,
    routing,
    routing_prep,
    traffic_flows,
)

warnings.filterwarnings('ignore', category=FutureWarning)
warnings.filterwarnings('ignore', category=UserWarning, module='geopandas')

# OSM highway-tier rank dict — inlined in `_figures.py` to keep aperta
# examples standalone (aperta is OSM-agnostic; rank conventions are
# owned by aperta-atlas, which we don't import from in aperta's notebooks).
import _figures as figures  # noqa: E402  — project-local plot helpers

OSM_HIGHWAY_RANKS = figures.OSM_HIGHWAY_RANKS

Parameters

Everything tunable in one place.

[2]:

# Ground truth (proprietary). Override with APERTA_EXAMPLES_GROUND_TRUTH_DIR.
GROUND_TRUTH_DIR = Path(os.environ.get(
    'APERTA_EXAMPLES_GROUND_TRUTH_DIR', '../data/ground_truth'))
GROUND_TRUTH_LEGS = GROUND_TRUTH_DIR / 'travel_times_car_peak.csv'
GROUND_TRUTH_COUNTERS = GROUND_TRUTH_DIR / 'traffic_counters.gpkg'

# Area + CRS. `Kanton Zürich` (~1,700 km²) is much larger than the city
# — Nominatim's default match for the bare "Zurich, Switzerland" would
# return the Gemeinde (admin_level=8, ~92 km²); the explicit "Kanton
# Zürich" name resolves to the canton (admin_level=4).
PLACE = 'Kanton Zürich, Switzerland'
LOCATION_LABEL = 'Zurich'
CRS_METRIC = 'EPSG:2056'  # LV95 (Swiss metric)
H3_RES_CELLS = 10          # ~130 m hex edge
H3_RES_ZONES = 8           # ~460 m hex edge (parent-child = single H3 call)
DENSITY_RADIUS_M = 500.0   # for the per-edge `density_norm` feature

# Counter-to-edge snap. Highway counters get a wider radius (sparser
# layout, lower risk of catching a parallel local road) but can only
# snap to highway edges. Bearing tolerance prevents opposite-direction
# counters from cross-snapping on two-way roads.
HIGHWAY_RADIUS_M = 25.0
NON_HIGHWAY_RADIUS_M = 10.0
BEARING_TOL_DEG = 20.0

# Initial per-edge durations for flow estimation:
# base = INITIAL_BASELINE_MULT · length / speed_kph, with multiplicative
# + additive corrections for density + signal load on top. The baseline
# multiplier > 1 encodes the average "slower than posted limit" effect
# from intersections / curves / minor bottlenecks not otherwise captured
# by the two feature-based corrections. Off-peak car priors; the
# flow-aware edge calibration in §5 replaces these with fitted values.
INITIAL_BASELINE_MULT = 1.2
INITIAL_MULT = {'density_norm': 1.0}
INITIAL_ADD = {'is_traffic_signal': 5.0}

# OD-tier radii (CRS metres) + travel-time cutoff.
R_CELLS_M = 1_500
R_MEDIUM_M = 10_000
R_ZONES_M = 100_000
# Cutoff at 60 min: the study area doesn't systematically allow for
# longer trips than that; a wider cutoff biases the sample.
CAR_TIME_CUTOFF_S = 3600

# Study-area extents — two concentric polygons, derived in §1
# from the polygon for `PLACE`:
#   INNER = the polygon (verbatim) → evaluation +
#     calibration domain. Used to filter traffic counters (evaluation)
#     AND ground-truth trip legs (calibration). Flows near the
#     boundary aren't fully reliable — traffic to/from outside the
#     model isn't captured — but for a demo this is the honest scope
#     without cascading buffers.
#   OUTER = inner + NETWORK_BUFFER_M → OSM downloads
#     (network + buildings) + H3 cell grid. Extra network beyond the
#     evaluation domain lets border-crossing routes finish properly
#     instead of dead-ending at the boundary.
NETWORK_BUFFER_M = 20_000.0

# Sampling. Origins drawn trip_weight-weighted (with replacement, then
# deduped); destinations drawn per-origin proportional to the
# bin-adjusted weights (§3).
N_ORIG = 20_000
N_DEST = 50
RNG_SEED = 42

# Cost-distribution target P(C). `N_BINS` is the granularity of the
# percentile-binned target (20 ≙ 5%-bins). `MIN_COST_S` / `MAX_COST_S`
# trim the survey to a plausible trip-time window — they become the 0th
# and 100th percentiles of the target distribution.
N_BINS = 20
MIN_COST_S = 0.0
MAX_COST_S = 3600.0   # 1 h - covers most survey trips

# Volume scaling. Rough hand-wavy prior: on average ~3 vehicle-trips per
# building per day (mix of residential + commercial). Production fits
# this against observed counters.
TRIPS_PER_BUILDING_PER_DAY = 3.0

# Trip-generation weight per cell — analogous in shape to aperta-atlas 04a's
# calibrated Poisson GLM (log1p(pop) + log1p(emp) with density interactions),
# hand-picked in magnitude here:
#   trip_weight = (1 + n_buildings)^(LOG_BLDG_COEF + DENSITY_INTERACTION_COEF · density_norm)
LOG_BLDG_COEF = 1.0             # log-linear scaling in building count
DENSITY_INTERACTION_COEF = 0.5  # extra scaling in denser (more urban) cells

# BPR capacity per lane (veh/day per lane) by road tier — daily-equivalent
# of textbook hourly capacities scaled to typical AADT loading. Used to
# compute `vc = flow / capacity`, which becomes the flow-aware feature
# `vc_beta_2 = vc²` in edge-weight calibration.
CAP_PER_LANE_HIGHWAY = 30_000.0   # motorway, trunk
CAP_PER_LANE_MAIN    = 15_000.0   # primary, secondary, tertiary
CAP_PER_LANE_LOCAL   = 10_000.0   # residential, unclassified, ...
VC_BETA_EXPONENT     = 2.0        # BPR standard is β ≈ 4 for saturated flows;
                                  # β=2 fits better empirically on Swiss data
                                  # (calibration coefficient absorbs residual).

1. Study-area polygons + OSM network + ground truth

Three concentric polygons anchor the model (see the Parameters section for the semantic split). Then one OSMnx call each for the car network + buildings, plus two per-edge features (is_traffic_signal + density_norm) derived inline. Features enter BOTH the flow-estimation step (as prior duration adjustments) AND the edge-weight calibration below. Ground-truth files load here too; both get spatially filtered to the appropriate polygon.

[3]:

# --- Fetch place boundary + compute the two polygons (in LV95).
_boundary_ll = ox.geocode_to_gdf(PLACE).dissolve()
inner_polygon = _boundary_ll.to_crs(CRS_METRIC).geometry.iloc[0]
outer_polygon = inner_polygon.buffer(NETWORK_BUFFER_M)
# OSMnx polygon-based fetches want WGS84.
outer_polygon_ll = gpd.GeoSeries(
    [outer_polygon], crs=CRS_METRIC).to_crs('EPSG:4326').iloc[0]
print(f"Study-area polygons (km²): "
      f"inner {inner_polygon.area / 1e6:,.0f}  |  "
      f"outer (+ {NETWORK_BUFFER_M/1000:.0f} km) {outer_polygon.area / 1e6:,.0f}")

# --- OSM car network over the OUTER polygon (place + NETWORK_BUFFER_M).
# Skip node consolidation (`simplify=True` only merges collinear
# geometry): consolidation would collapse groups of traffic-signal
# nodes into one, distorting the "either endpoint has a signal" test.
car_graph = ox.graph_from_polygon(
    outer_polygon_ll, network_type='drive', simplify=True)
car_graph = ox.project_graph(car_graph, to_crs=CRS_METRIC)
# Populate per-edge `speed_kph` from OSM `maxspeed` + per-highway fallback,
# matching what aperta-atlas's `preparation/world/osm/networks_decorate.py` does.
ox.add_edge_speeds(car_graph)
print(f"Car graph: {car_graph.number_of_nodes():,} nodes / "
      f"{car_graph.number_of_edges():,} edges")

# --- is_traffic_signal (raw OSM tag on nodes) → OR over edge endpoints.
for _, d in car_graph.nodes(data=True):
    d['is_traffic_signal'] = int(d.get('highway') == 'traffic_signals')
for u, v, k, d in car_graph.edges(keys=True, data=True):
    d['is_traffic_signal'] = int(
        car_graph.nodes[u]['is_traffic_signal']
        or car_graph.nodes[v]['is_traffic_signal'])

# --- density_norm: per-node KDTree count within DENSITY_RADIUS_M → normalise → mean of edge endpoints.
_node_ids = list(car_graph.nodes)
_xy = np.array([[car_graph.nodes[n]['x'], car_graph.nodes[n]['y']] for n in _node_ids])
_counts = KDTree(_xy).query_radius(_xy, r=DENSITY_RADIUS_M, count_only=True)
_density = _counts / max(_counts.max(), 1)
for n, dens in zip(_node_ids, _density):
    car_graph.nodes[n]['density_norm'] = float(dens)
for u, v, k, d in car_graph.edges(keys=True, data=True):
    d['density_norm'] = 0.5 * (
        car_graph.nodes[u]['density_norm']
        + car_graph.nodes[v]['density_norm'])

# Mode-aware preparation: keeps the graph directed (car defaults),
# precomputes the largest strongly connected component as the
# snap-eligible node set.
car_prepared = routing_prep.prepare_network(car_graph, 'car')
car_graph = car_prepared.graph
print(f"  Snap-eligible (largest SCC): {len(car_prepared.snap_eligible_nodes):,} nodes "
      f"({100 * len(car_prepared.snap_eligible_nodes) / car_graph.number_of_nodes():.1f}%)")

speeds = np.array([float(d['speed_kph'])
                   for _, _, d in car_graph.edges(data=True)])
print(f"Baseline car edge speeds: median {np.median(speeds):.0f} km/h, "
      f"range {speeds.min():.0f}–{speeds.max():.0f} km/h.")

# --- Ground-truth trip legs — filter to INNER polygon (both endpoints).
_legs_all = pd.read_csv(GROUND_TRUTH_LEGS)
_orig_pts = gpd.GeoSeries(
    gpd.points_from_xy(_legs_all['orig_x'], _legs_all['orig_y']), crs=CRS_METRIC)
_dest_pts = gpd.GeoSeries(
    gpd.points_from_xy(_legs_all['dest_x'], _legs_all['dest_y']), crs=CRS_METRIC)
_both_in = _orig_pts.within(inner_polygon).values & _dest_pts.within(inner_polygon).values
legs = _legs_all.loc[_both_in].copy()
print(f"Ground-truth legs (both endpoints in inner polygon): "
      f"{len(legs):,} of {len(_legs_all):,} "
      f"— median time {legs['time_measured'].median():.0f} s, "
      f"median dist {legs['dist_measured'].median():.0f} m")

# --- Traffic counters — filter to the INNER polygon.
# `.to_crs(CRS_METRIC)` is load-bearing: geopandas `.within()` doesn't
# auto-reproject, so mismatched CRS would silently return False for
# every counter and yield an empty evaluation set.
counters_all = gpd.read_file(GROUND_TRUTH_COUNTERS).to_crs(CRS_METRIC)
_ct_in = counters_all.geometry.within(inner_polygon)
counters = counters_all[_ct_in].copy()
print(f"Counters (all Switzerland → inside inner polygon): "
      f"{len(counters):,} of {len(counters_all):,} "
      f"(highway: {int(counters['is_highway'].sum()):,}, "
      f"main: {int(counters['is_main'].sum()):,}, "
      f"local: {int(counters['is_local'].sum()):,})")

Study-area polygons (km²): inner 1,729  |  outer (+ 20 km) 6,581
Car graph: 91,125 nodes / 216,801 edges
  Snap-eligible (largest SCC): 90,889 nodes (99.7%)
Baseline car edge speeds: median 34 km/h, range 10–120 km/h.
Ground-truth legs (both endpoints in inner polygon): 3,869 of 49,773 — median time 667 s, median dist 5149 m
Counters (all Switzerland → inside inner polygon): 832 of 4,691 (highway: 55, main: 725, local: 52)

2. Build cells + zones + trip-generation weight

H3 hex grids covering the OUTER polygon (inner + NETWORK_BUFFER_M); OSM building centroids (also fetched over the OUTER polygon) assigned to cells give n_buildings; a Poisson-GLM-shaped rescaling gives per-cell trip_weight.

[4]:

cells = geo_processing.build_h3_grid(
    outer_polygon_ll, H3_RES_CELLS,
    polygon_crs='EPSG:4326', target_crs=CRS_METRIC,
)
# H3's parent-child relationship gives the cell→zone assignment for free.
cells['zone_id'] = [h3.cell_to_parent(c, H3_RES_ZONES) for c in cells.index]
zone_ids = sorted(cells['zone_id'].unique())
zones = gpd.GeoDataFrame(
    {'geometry': [Polygon([(lng, lat) for lat, lng in h3.cell_to_boundary(z)])
                  for z in zone_ids]},
    index=pd.Index(zone_ids, name='zone_id'),
    crs='EPSG:4326',
).to_crs(CRS_METRIC)

# OSM building footprints → per-cell count as the trip-generation proxy.
_b = ox.features_from_polygon(outer_polygon_ll, tags={'building': True})
_b = _b[_b.geometry.type.isin(['Polygon', 'MultiPolygon'])][['geometry']].to_crs(CRS_METRIC)
_b_ll = _b.geometry.centroid.to_crs('EPSG:4326')
_building_cells = [h3.latlng_to_cell(y, x, H3_RES_CELLS)
                   for x, y in zip(_b_ll.x, _b_ll.y)]
cells['n_buildings'] = pd.Series(_building_cells).value_counts().reindex(
    cells.index, fill_value=0).astype(int)
zones['n_buildings'] = cells.groupby('zone_id')['n_buildings'].sum().reindex(
    zones.index, fill_value=0).astype(int)

# Snap cells + zones to nearest snap-eligible car-graph node.
cells['node_id'], _ = network_snap.snap_to_network_nodes(
    gpd.GeoDataFrame(geometry=cells.geometry.centroid, index=cells.index, crs=cells.crs),
    car_graph, eligible_node_ids=car_prepared.snap_eligible_nodes)
zones['node_id'], _ = network_snap.snap_to_network_nodes(
    gpd.GeoDataFrame(geometry=zones.geometry.centroid, index=zones.index, crs=zones.crs),
    car_graph, eligible_node_ids=car_prepared.snap_eligible_nodes)

# Drop unsnappable cells / zones + cells whose parent zone dropped out;
# drop cells with 0 buildings (no trip generation).
cells = cells.dropna(subset=['node_id']).copy()
zones = zones.dropna(subset=['node_id']).copy()
cells['node_id'] = cells['node_id'].astype(int)
zones['node_id'] = zones['node_id'].astype(int)
cells = cells[cells['zone_id'].isin(zones.index)].copy()
cells = cells[cells['n_buildings'] > 0].copy()

# Per-cell density from the snap node (same values used for the edge
# `density_norm` feature above); modifier in the trip-generation weight.
cells['density_norm'] = cells['node_id'].map(
    lambda n: car_graph.nodes[n]['density_norm'])
_log_bldg = np.log1p(cells['n_buildings'].astype(float))
cells['trip_weight'] = np.exp(
    LOG_BLDG_COEF * _log_bldg
    + DENSITY_INTERACTION_COEF * _log_bldg * cells['density_norm'])
# Zones aggregate additively from cells (lookup_dest_column_node conservation invariant).
zones['trip_weight'] = cells.groupby('zone_id')['trip_weight'].sum().reindex(
    zones.index, fill_value=0.0)

total_buildings = int(cells['n_buildings'].sum())
print(f"Cells: {len(cells):,} (with buildings)  |  "
      f"Zones: {len(zones):,}  |  "
      f"Σ n_buildings: {total_buildings:,}")
print(f"  trip_weight per cell: "
      f"median {cells['trip_weight'].median():.1f}, "
      f"P95 {cells['trip_weight'].quantile(0.95):.1f}")

# (Counters are already filtered to the canton polygon in §1;
# `counters` is available for use downstream.)

Cells: 122,518 (with buildings)  |  Zones: 9,489  |  Σ n_buildings: 829,315
  trip_weight per cell: median 5.1, P95 37.3

3. Estimate per-edge traffic flows

Prior edge durations → tiered OD pairs → shortest-path costs → nested-betweenness sampling with a survey-derived target cost distribution P(C) → scale counts to AADT. The final output is flow_estimate on each edge, which we then normalize by lane capacity into vc_beta_2 — the flow-aware feature that enters §5’s edge-weight calibration.

[5]:

# --- Snap counters to the car-graph edges (per-tier eligibility filter).
def _edge_rank_and_tier(d) -> tuple[int, str]:
    hwy = d.get('highway')
    if isinstance(hwy, list):
        hwy = hwy[0] if hwy else None
    rank = OSM_HIGHWAY_RANKS.get(hwy, -1)
    if rank >= 6:
        tier = 'highway'    # motorway / trunk
    elif rank >= 3:
        tier = 'main'       # primary / secondary / tertiary
    else:
        tier = 'local'      # residential / service / unknown
    return rank, tier

for _, _, _, d in car_graph.edges(keys=True, data=True):
    d['_highway_rank'], d['_tier'] = _edge_rank_and_tier(d)

max_distance = counters['is_highway'].map(
    {1: HIGHWAY_RADIUS_M, 0: NON_HIGHWAY_RADIUS_M})

def _eligible_for_counter(counter_row, candidate_edges):
    if counter_row['is_highway']:
        wanted = 'highway'
    elif counter_row['is_main']:
        wanted = 'main'
    else:
        wanted = 'local'
    return candidate_edges[candidate_edges['_tier'] == wanted]

snapped = calibration.snap_counters_to_edges(
    counters, car_graph,
    max_distance=max_distance,
    bearing_tol_deg=BEARING_TOL_DEG,
    eligible_edges=_eligible_for_counter,
)
counters = counters.join(snapped)
counters['highway_rank'] = [
    car_graph[u][v][k]['_highway_rank'] if pd.notna(u) else np.nan
    for u, v, k in zip(counters['u'], counters['v'], counters['k'])
]
n_matched = counters['u'].notna().sum()
print(f"Counters snapped: {n_matched:,}/{len(counters):,} "
      f"({n_matched / max(len(counters), 1) * 100:.1f}%)")

Counters snapped: 755/832 (90.7%)

[6]:

# --- Prior per-edge durations for sampling.
KMH_TO_MS = 1.0 / 3.6
for u, v, k, d in car_graph.edges(keys=True, data=True):
    base = float(d['length']) / (float(d['speed_kph']) * KMH_TO_MS) * INITIAL_BASELINE_MULT
    mult_term = base * sum(c * float(d[f]) for f, c in INITIAL_MULT.items())
    add_term = sum(c * float(d[f]) for f, c in INITIAL_ADD.items())
    d['duration_initial'] = max(base + mult_term + add_term, base * 0.2)

# --- Tiered OD pairs + per-pair routing costs. Symmetric `trip_weight`
# at origin and destination (matches aperta-atlas 04b's convention).
pairs = od_pairs.get_pairs(
    cells, r_cells=R_CELLS_M, node_column='node_id',
    zones=zones, r_zones=R_ZONES_M, r_medium=R_MEDIUM_M,
)
costs = routing.tiered_path_costs(car_graph, pairs, weight='duration_initial', cutoff=CAR_TIME_CUTOFF_S,
)
orig_weights = od_pairs.node_values(
    'trip_weight', cells, list(pairs.cells_to_cells.keys()))
dest_weights = od_pairs.lookup_dest_column_node(
    'trip_weight', pairs, cells, zones=zones)
cell_to_zone_node = od_pairs.build_cell_to_zone_node_map(cells, zones)

# --- Cost-distribution target P(C). Survey trip times trimmed to
# [MIN_COST_S, MAX_COST_S]; equal-probability percentile bins over the
# in-range subset become the target each origin is rescaled to match.
_survey_costs = legs.loc[
    (legs['time_measured'] >= MIN_COST_S)
    & (legs['time_measured'] <= MAX_COST_S),
    'time_measured',
].to_numpy()
bin_edges = traffic_flows.percentile_bin_edges(_survey_costs, n_bins=N_BINS)
bin_edges[0] = MIN_COST_S
bin_edges[-1] = MAX_COST_S
print(f"Cost-bin edges ({N_BINS} bins over "
      f"[{MIN_COST_S:.0f}, {MAX_COST_S:.0f}] s, "
      f"n_survey={len(_survey_costs):,}):")
print(f"  {[f'{e:.0f}' for e in bin_edges]}")

adjusted_dest_weights = traffic_flows.bin_adjusted_dest_weights(
    pairs, costs, dest_weights, bin_edges,
)

# --- Sample origins + destinations; accumulate edge betweenness; scale to AADT.
rng = np.random.RandomState(RNG_SEED)
nested_sample = traffic_flows.nested_node_sample(
    pairs=pairs, weights=adjusted_dest_weights, costs=costs,
    cell_to_zone_node=cell_to_zone_node, orig_weights=orig_weights,
    cost_to_weight=np.ones_like, n_orig=N_ORIG, n_dest=N_DEST,
    random_state=rng,
)
edge_bc = network_processing.get_nested_edge_betweenness(
    car_graph, nested_sample, weight='duration_initial',
    cutoff=od_pairs.max_cost(costs),
)
aadt_scale = (total_buildings * TRIPS_PER_BUILDING_PER_DAY) / (len(nested_sample) * N_DEST)
flows = edge_bc * aadt_scale
network_processing.set_nx_edge_attributes_filled(
    car_graph, flows.to_dict(), 'flow_estimate', fill_value=0.0)
print(f"flows (veh/day): median {flows.median():.0f}, "
      f"P95 {flows.quantile(0.95):.0f}, max {flows.max():.0f}")

# --- Evaluate flows against counters (sanity check before using them
# as an edge-weight feature).
ev_flows = calibration.evaluate_against_counters(flows, counters)
print(f"Fit at counters: R²={ev_flows['r2']:.3f}, "
      f"slope={ev_flows['slope']:.3f}, "
      f"RMSE={ev_flows['rmse']:.0f}, "
      f"n={ev_flows['n_matched']:,}")

Cost-bin edges (20 bins over [0, 3600] s, n_survey=3,845):
  ['0', '145', '195', '245', '288', '336', '387', '447', '507', '582', '661', '754', '836', '942', '1061', '1195', '1372', '1578', '1876', '2275', '3600']
flows (veh/day): median 232, P95 3613, max 38231
Fit at counters: R²=0.788, slope=0.556, RMSE=5109, n=754

[7]:

# --- Compute vc_beta = (flow/capacity)^β per edge. Capacity depends on
# road tier + number of lanes; β=2 balances well against typical
# Swiss-network fit sensitivity.
def _capacity_per_lane(d) -> float:
    """Textbook hourly capacity per lane, daily-equivalent."""
    hwy = d.get('highway')
    if isinstance(hwy, list):
        hwy = hwy[0] if hwy else None
    rank = OSM_HIGHWAY_RANKS.get(hwy, -1)
    if rank >= 6:
        return CAP_PER_LANE_HIGHWAY
    if rank >= 3:
        return CAP_PER_LANE_MAIN
    return CAP_PER_LANE_LOCAL

for u, v, k, d in car_graph.edges(keys=True, data=True):
    lanes = float(d.get('lanes_per_direction') or 1) or 1.0
    cap = _capacity_per_lane(d) * max(lanes, 1.0)
    flow = float(d.get('flow_estimate', 0.0))
    vc = flow / cap if cap > 0 else 0.0
    d['capacity'] = cap
    d['vc'] = vc
    d['vc_beta_2'] = vc ** VC_BETA_EXPONENT

_vc = np.array([float(d['vc']) for _, _, d in car_graph.edges(data=True)])
_vc_beta = np.array([float(d['vc_beta_2']) for _, _, d in car_graph.edges(data=True)])
print(f"vc (flow/capacity):   median {np.median(_vc):.3f}, "
      f"P95 {np.quantile(_vc, 0.95):.3f}, max {_vc.max():.3f}")
print(f"vc_beta_2 = vc^{VC_BETA_EXPONENT:.0f}:  median {np.median(_vc_beta):.4f}, "
      f"P95 {np.quantile(_vc_beta, 0.95):.4f}, max {_vc_beta.max():.4f}")

vc (flow/capacity):   median 0.009, P95 0.206, max 1.483
vc_beta_2 = vc^2:  median 0.0001, P95 0.0423, max 2.1983

4. Traffic flow parameter calibration

The trip-generation weight (1 + n_buildings)^(LOG_BLDG_COEF + DENSITY_INTERACTION_COEF · density_norm) embeds one hand-picked knob: how much more trips per building dense (urban) cells emit than sparse (rural) ones. Production would coordinate-descent this alongside the calibration coefficients; here we sweep it in isolation to see what the response surface looks like.

The expensive step in §3 (routing.tiered_path_costs — Dijkstra over every OD pair) does not depend on DENSITY_INTERACTION_COEF, so we reuse pairs, costs, cell_to_zone_node, and bin_edges across the sweep. Only trip-weight recomputation, nested sampling, and betweenness accumulation run per iteration.

[8]:

COEF_SWEEP = [-0.5, 0.0, 0.5, 1.0, 1.5]


def _estimate_flows(coef: float) -> dict:
    """Recompute flows for a given `DENSITY_INTERACTION_COEF`.
    Reuses `pairs`, `costs`, `cell_to_zone_node`, `bin_edges` from §3."""
    _log = np.log1p(cells['n_buildings'].astype(float))
    tw = np.exp(LOG_BLDG_COEF * _log + coef * _log * cells['density_norm'])
    cells_c = cells.assign(trip_weight=tw)
    zones_c = zones.assign(
        trip_weight=cells_c.groupby('zone_id')['trip_weight'].sum()
        .reindex(zones.index, fill_value=0.0))
    ow = od_pairs.node_values(
        'trip_weight', cells_c, list(pairs.cells_to_cells.keys()))
    dw = od_pairs.lookup_dest_column_node(
        'trip_weight', pairs, cells_c, zones=zones_c)
    adj = traffic_flows.bin_adjusted_dest_weights(pairs, costs, dw, bin_edges)
    rng = np.random.RandomState(RNG_SEED)
    sample = traffic_flows.nested_node_sample(
        pairs=pairs, weights=adj, costs=costs,
        cell_to_zone_node=cell_to_zone_node, orig_weights=ow,
        cost_to_weight=np.ones_like, n_orig=N_ORIG, n_dest=N_DEST,
        random_state=rng)
    bc = network_processing.get_nested_edge_betweenness(
        car_graph, sample, weight='duration_initial',
        cutoff=od_pairs.max_cost(costs))
    scale = (total_buildings * TRIPS_PER_BUILDING_PER_DAY) / (len(sample) * N_DEST)
    ev = calibration.evaluate_against_counters(bc * scale, counters)
    nrmse = ev['rmse'] / ev['merged']['observed'].mean()
    return {'coef': coef, 'r2': ev['r2'], 'nrmse': nrmse, 'n': ev['n_matched']}


sweep = pd.DataFrame([_estimate_flows(c) for c in COEF_SWEEP])
print(sweep.to_string(index=False))

 coef       r2    nrmse   n
 -0.5 0.746145 0.873987 755
  0.0 0.769436 0.831832 755
  0.5 0.788033 0.770664 754
  1.0 0.740434 0.711470 755
  1.5 0.619856 0.835267 753

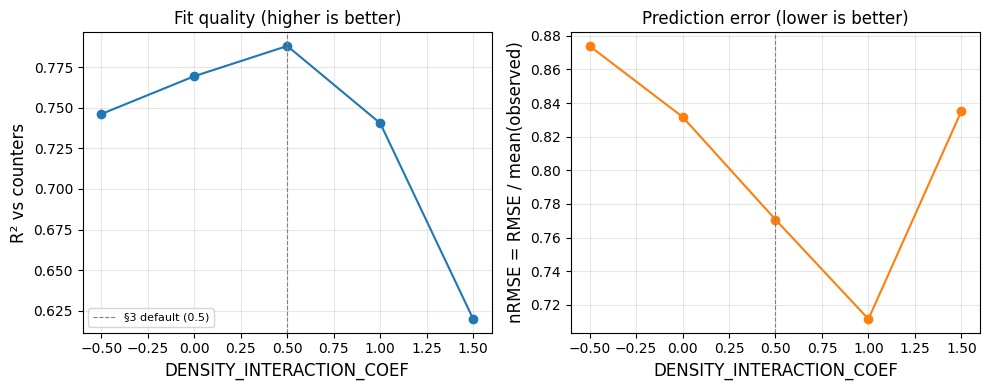

[9]:

fig, (ax_r2, ax_nrmse) = plt.subplots(1, 2, figsize=(10, 4), sharex=True)

ax_r2.plot(sweep['coef'], sweep['r2'], marker='o', color='tab:blue')
ax_r2.axvline(DENSITY_INTERACTION_COEF, linestyle='--', color='gray',
              linewidth=0.8, label=f'§3 default ({DENSITY_INTERACTION_COEF})')
ax_r2.set_xlabel('DENSITY_INTERACTION_COEF')
ax_r2.set_ylabel('R² vs counters')
ax_r2.set_title('Fit quality (higher is better)')
ax_r2.legend(loc='lower left', fontsize=8)
ax_r2.grid(True, alpha=0.3)

ax_nrmse.plot(sweep['coef'], sweep['nrmse'], marker='o', color='tab:orange')
ax_nrmse.axvline(DENSITY_INTERACTION_COEF, linestyle='--', color='gray',
                 linewidth=0.8)
ax_nrmse.set_xlabel('DENSITY_INTERACTION_COEF')
ax_nrmse.set_ylabel('nRMSE = RMSE / mean(observed)')
ax_nrmse.set_title('Prediction error (lower is better)')
ax_nrmse.grid(True, alpha=0.3)

plt.tight_layout()
figures.save_figure(fig, 'density_interaction_sweep', ext='pdf')
plt.show()

Saved results/figures_highres/density_interaction_sweep.pdf
../_images/examples_calibration_14_1.png

5. Flow-aware edge-weight calibration

Same aperta.calibration.calibrate_edge_weights primitive as edge_weights.ipynb used, but now the multiplier features include vc_beta_2 — a per-edge congestion index derived from the flow estimate. The idea: intersection-only and density-only features capture where travel time is slower in the abstract; vc_beta_2 captures why it’s slower under peak load. In practice, adding it closes the gap on congested motorway / main-road links that pure geometry-based features miss.

Three feature groups enter the OLS fit:

  • multiplier: scales baseline duration. coef · baseline ·   feature_value. density_norm + vc_beta_2 here.

  • additive_route: adds seconds per occurrence, summed along the routed path. is_traffic_signal here.

  • additive_endpoint: adds seconds based on a per-node attribute at origin + destination. Empty here for simplicity; production adds snap_dist (cell-centroid → nearest-node distance) — see aperta-atlas.

[10]:

# Zero (0.0) defaults for coefficients is generally fine, calibration converges.
result_flowaware = calibration.calibrate_edge_weights(
    car_graph, legs,
    baseline_speed_attr='speed_kph',
    multiplier_features={
        'density_norm':      0.0,
        'vc_beta_2':         0.0,
    },
    additive_route_features={
        'is_traffic_signal': 0.0,
    },
    additive_endpoint_features={},
    constant=0.0,
    n_iterations=3,
    max_dist_to_line_ratio=5.0,
    eligible_node_ids=car_prepared.snap_eligible_nodes,
)

print(f"\nn = {result_flowaware.n_used:,} trips\n")
print("Baseline R² / RMSE / bias by distance band:")
print(result_flowaware.metrics_baseline.round(3).to_string())
print("\nCalibrated R² / RMSE / bias by distance band:")
print(result_flowaware.metrics_calibrated.round(3).to_string())
print("\nCoefficient table:")
print(result_flowaware.coefficients.to_string())


n = 3,760 trips

Baseline R² / RMSE / bias by distance band:
             r2      rmse   bias     n
all       0.359   589.807  0.512  3760
< 5 km   -0.116   316.208  0.473  2314
5-25 km  -0.643   824.549  0.528  1392
>= 25 km -3.269  1552.969  0.559    54

Calibrated R² / RMSE / bias by distance band:
             r2     rmse   bias     n
all       0.861  274.917  0.867  3760
< 5 km    0.703  163.035  0.846  2314
5-25 km   0.655  378.012  0.874  1392
>= 25 km  0.221  663.380  0.911    54

Coefficient table:
                     coef      p
const              29.833  0.000
baseline_time       1.256  0.000
density_norm        1.496  0.000
vc_beta_2           0.093  0.000
is_traffic_signal   3.769  0.015

6. Flow map + calibrated-speed map (paper-figure crops)

[11]:

# 30 × 30 km crop centred on Zürich HB (2_683k / 1_248k in LV95).
PAPER_CROP_CENTER_XY = (2_683_000, 1_248_000)
PAPER_CROP_HALF_M    = 15_000
xlim = (PAPER_CROP_CENTER_XY[0] - PAPER_CROP_HALF_M,
        PAPER_CROP_CENTER_XY[0] + PAPER_CROP_HALF_M)
ylim = (PAPER_CROP_CENTER_XY[1] - PAPER_CROP_HALF_M,
        PAPER_CROP_CENTER_XY[1] + PAPER_CROP_HALF_M)

# --- Flow map.
FLOW_VMAX = 50_000   # AADT cap for the colour scale
fig, ax = plt.subplots(figsize=(7, 6.5))
figures.plot_network_map(
    ax, car_graph, flows,
    cbar_label=f'flows (veh/day, clipped at {FLOW_VMAX:,})',
    title=f'Estimated per-edge AADT ({LOCATION_LABEL})',
    xlim=xlim, ylim=ylim,
    vmax=FLOW_VMAX,
)
plt.tight_layout()
figures.save_figure(fig, 'flow_estimate_map')
plt.show()

# --- Calibrated per-edge effective speed. `speed_kph = length_m /
# duration_calibrated_s × 3.6`. Intersections + signalised crossings +
# congested corridors all appear as locally-slower edges even on roads
# that OSM tags as fast — the effect that makes `duration_calibrated`
# more realistic than the OSM-`maxspeed` baseline.
speed_calibrated_kph = {
    (u, v, k): float(d['length']) / float(d['duration_calibrated']) * 3.6
    for u, v, k, d in car_graph.edges(keys=True, data=True)
    if float(d['duration_calibrated']) > 0
}
_speeds = np.array(list(speed_calibrated_kph.values()))
print(f"Calibrated edge speeds (km/h): "
      f"median {np.median(_speeds):.1f}, "
      f"P5–P95 [{np.quantile(_speeds, 0.05):.1f}, "
      f"{np.quantile(_speeds, 0.95):.1f}], "
      f"max {_speeds.max():.0f}")

fig, ax = plt.subplots(figsize=(7, 6.5))
figures.plot_network_map(
    ax, car_graph, speed_calibrated_kph,
    cmap='YlGnBu', vmin=10, vmax=90,
    cbar_label='effective speed (km/h, including intersections + congestion)',
    title=f'Calibrated per-edge effective speed — peak hours ({LOCATION_LABEL})',
    xlim=xlim, ylim=ylim,
    basemap=True, crs=CRS_METRIC,
)
plt.tight_layout()
figures.save_figure(fig, 'calibrated_edge_speed_map')
plt.show()

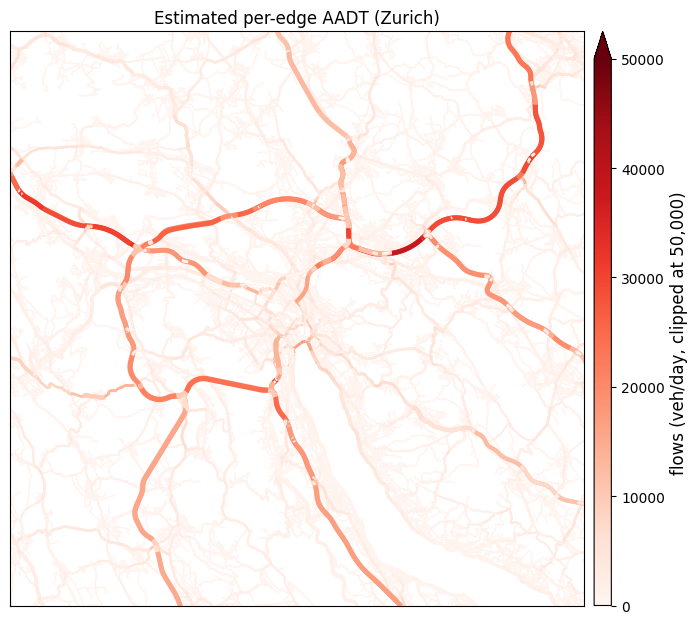

Saved results/figures_highres/flow_estimate_map.png
../_images/examples_calibration_18_1.png

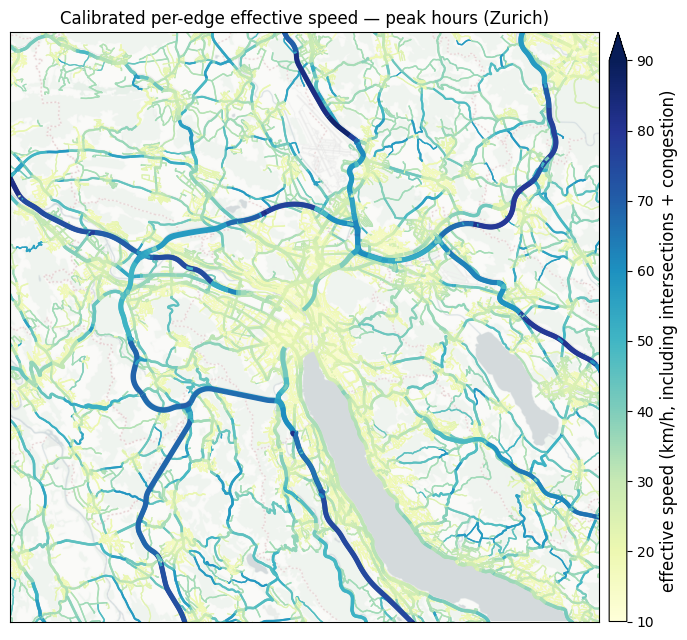

Calibrated edge speeds (km/h): median 22.0, P5–P95 [15.7, 43.0], max 86
Saved results/figures_highres/calibrated_edge_speed_map.png
../_images/examples_calibration_18_3.png

Downstream use — Pandana

Pandana is a fast C++ routing engine widely used for cumulative-opportunity accessibility. Aperta and Pandana can be used in a complementary fashion: aperta produces calibrated, congestion-aware, multi-modal edge weights; Pandana consumes them for high-throughput single-mode shortest-path queries on a fixed network.

This showcase doesn’t save its output — the calibrated weights live in-memory only — but persisting + reloading is trivial:

import osmnx as ox
import pandana
import pandas as pd

# If you DO want to persist the calibrated graph:
# ox.save_graphml(car_graph, 'car_graph_calibrated.graphml')

nodes = ox.graph_to_gdfs(car_graph, edges=False)
edges = ox.graph_to_gdfs(car_graph, nodes=False).reset_index()

net = pandana.Network(
    node_x=nodes['x'], node_y=nodes['y'],
    edge_from=edges['u'], edge_to=edges['v'],
    edge_weights=edges[['duration_calibrated']],
)
net.set(pd.Series(supermarket_node_ids, index=supermarket_node_ids),
        name='supermarkets')
n_within_15min = net.aggregate(
    distance=15 * 60, type='count', name='supermarkets',
)

The same calibrated graph loads into NetworkX, igraph, r5py, and any custom Dijkstra implementation. Calibration is a one-time step whose product is a standard graph — downstream tooling is the caller’s choice.

What this notebook does NOT do

Beyond the no-stochastic-routing / no-capacity-slowdown simplifications in the flow model:

  • No outer-loop tuning of the flow-model hyperparameters. DENSITY_INTERACTION_COEF, TRIPS_PER_BUILDING_PER_DAY, VC_BETA_EXPONENT, cost bins, etc. shape the flow estimation (and, for VC_BETA_EXPONENT, the congestion feature that enters §5). §4 sweeps DENSITY_INTERACTION_COEF in isolation; the others are hand-picked. Production coordinate-descents them jointly with the linear calibration coefficients against counters + Google-Maps trip times.

  • No iterative refinement on stricter trip filters. Production iterates filters (drop outliers, retain trips within a polygon, etc.) — we use a single set here.

  • No file outputs. Both the calibrated graph and the flow estimates live in memory only. See the ox.save_graphml(...) example above if you want to persist.

  • No capacity-normalised stress map. vc_beta_2 enters the edge-weight fit as a feature; visualising it separately as a stress/pressure map is a natural next step. See aperta-lumos for a production example.

For a full production stack (scenario configs, typed I/O, calibrate→transfer→apply dispatch, integrated calibrate → flows → accessibility chain), see aperta-atlas.
